锐捷SW对接Agile Controller不成功~~

cfplzjc

1、网络拓扑

Ruijie-SW1作为核心交换机，agg1上联Ruijie-RSR，g0/0旁挂华为AR充当DHCP服务器，g0/3横联华为Agile Controller充当radius服务器，做一个小小的portal实验

目前进展：输入1.1.1.1无法跳转portal页面，ISP为家用路由器，通过在Ruijie-RSR和家用路由器做2次NAT，实现访问外网。

2、网络配置

（1）Ruijie-RSR

！
hostname ISP01
!
ip access-list standard 10
 1 permit 192.168.1.0 0.0.0.255
!
interface GigabitEthernet 0/0
 ip address dhcp
 ip nat outside
!
interface AggregatePort 1
 no switchport
 ip address 172.16.1.1 255.255.255.252
 ip nat inside
!
interface GigabitEthernet 0/1
 port-group 1
!
interface GigabitEthernet 0/2
 port-group 1
!
ip nat inside source list 10 interface GigabitEthernet 0/0 overload

（2）Ruijie-SW01

！
hostname HX-SW01
!
ip portal source-interface GigabitEthernet 0/3
http redirect direct-site 10.1.5.107
http redirect direct-site 10.168.1.254
!
web-auth template portal v2
 ip 10.1.5.107
 url http://10.1.5.107:8080/portal
!
web-auth portal key pass@800
!
aaa new-model
!
aaa accounting update periodic 15
aaa accounting update
aaa accounting network default start-stop group radius
aaa authorization network default group radius
aaa authentication web-auth default group radius
!
service dhcp
！
ip radius source-interface GigabitEthernet 0/3
!
vlan range 1,10
!
interface GigabitEthernet 0/0
 no switchport
 description th
 ip address 172.16.2.2 255.255.255.252
!
interface AggregatePort 1
 no switchport
 ip address 172.16.1.2 255.255.255.252
!
interface GigabitEthernet 0/1
 no switchport
 port-group 1
!
interface GigabitEthernet 0/2
 no switchport
 port-group 1
!
interface GigabitEthernet 0/3
 no switchport
 ip address 10.1.5.254 255.255.255.0
!
interface GigabitEthernet 0/4
 switchport mode trunk
 web-auth enable portal
!
interface VLAN 10
 ip address 192.168.1.254 255.255.255.0
 ip helper-address 172.16.2.1
!
ip route 0.0.0.0 0.0.0.0 172.16.1.1

（3）DHCP_Server

#
 sysname dhcp
#
dhcp enable
#
ip pool user
 gateway-list 192.168.1.254
 network 192.168.1.0 mask 255.255.255.0
 dns-list 10.168.1.254
#
interface GigabitEthernet0/0/0
 ip address 172.16.2.1 255.255.255.252
 dhcp select global
#
ip route-static 192.168.1.0 255.255.255.0 172.16.2.2

（4）Ruijie-SW2

！
hostname Access-SW02
!
vlan range 1,10
!
interface GigabitEthernet 0/0
 switchport mode trunk
!
interface GigabitEthernet 0/1
 switchport access vlan 10

（5）radius配置

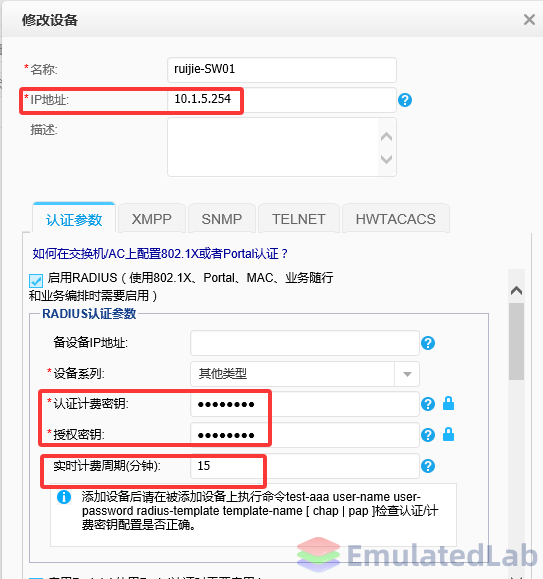

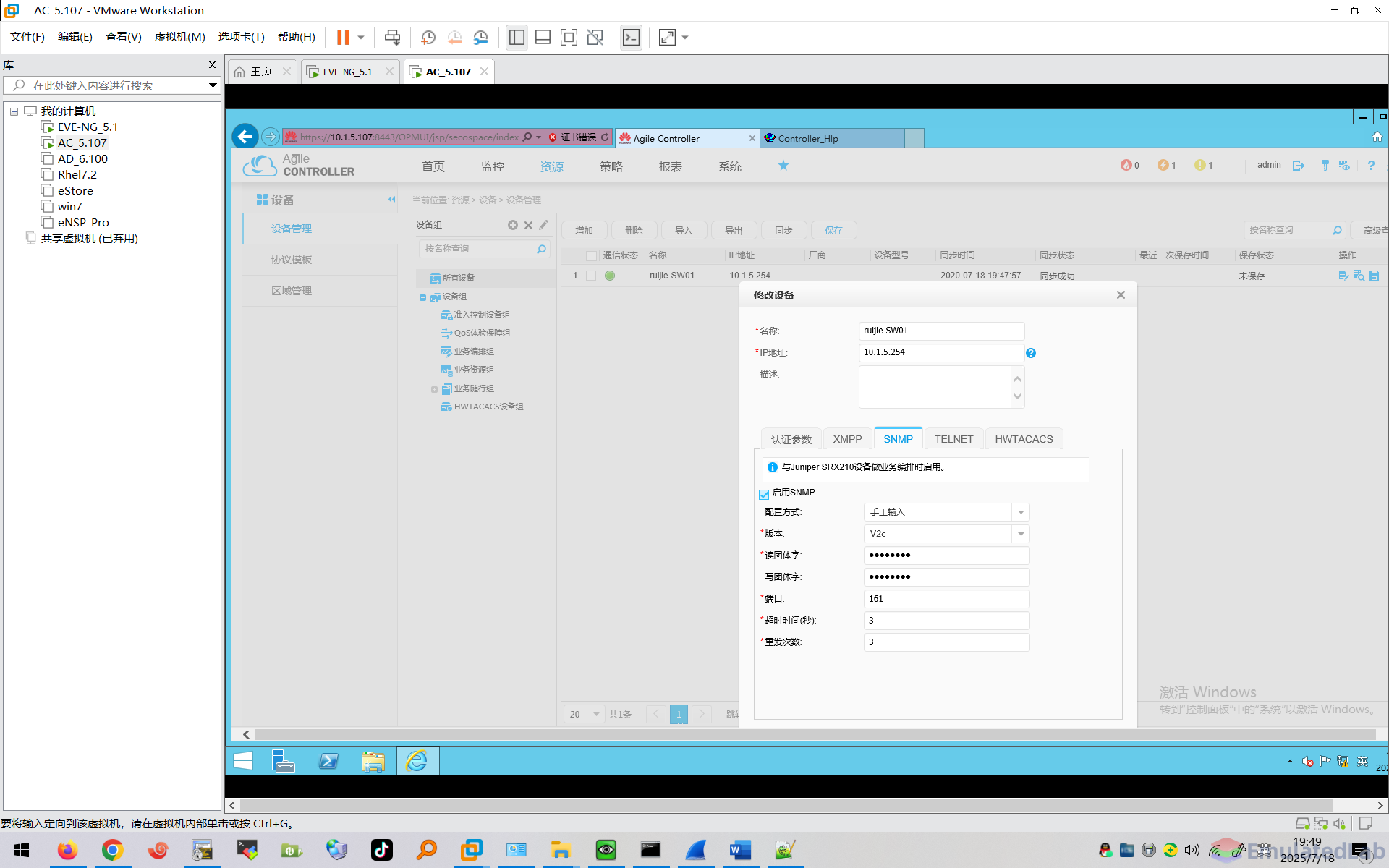

=======================设备管理

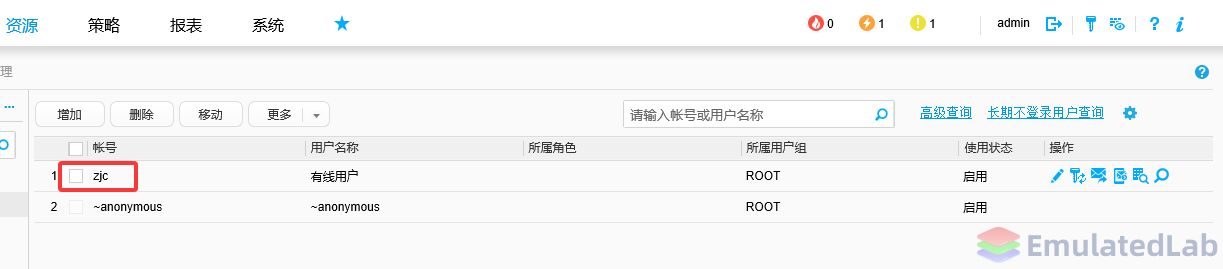

=======================添加用户

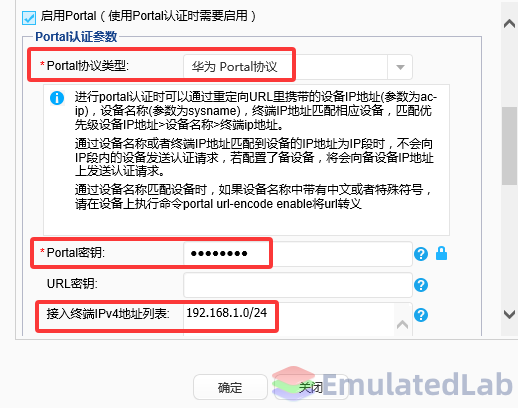

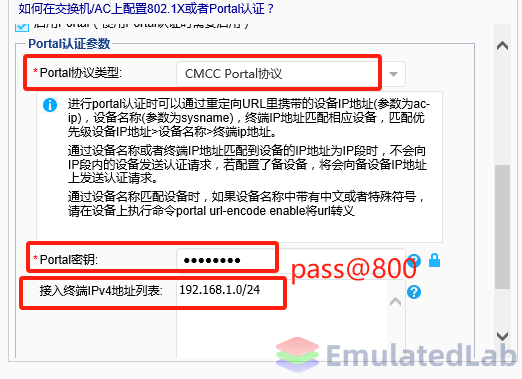

========================认证授权，略，其它实验已多次贴出

3、实验结果

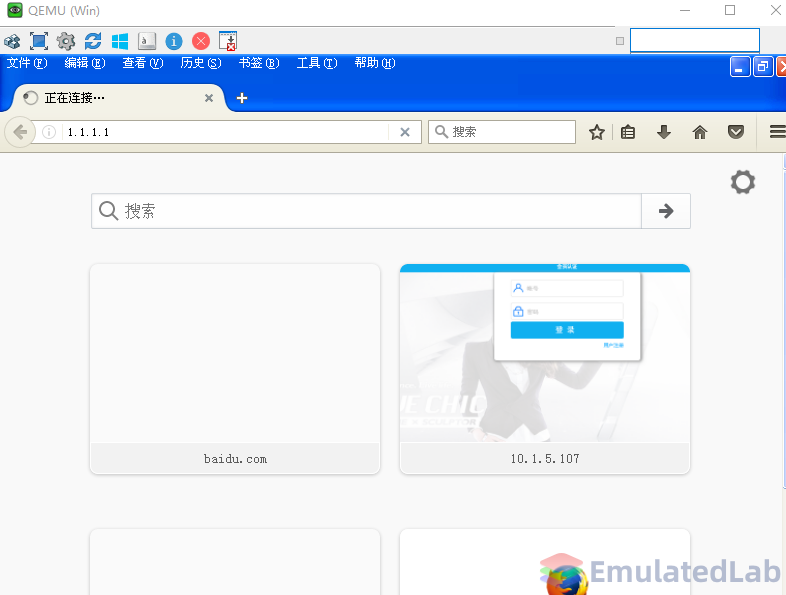

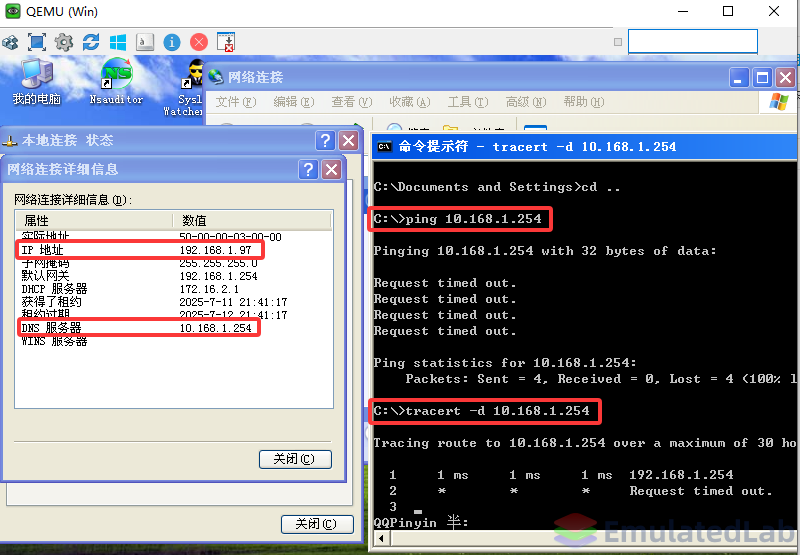

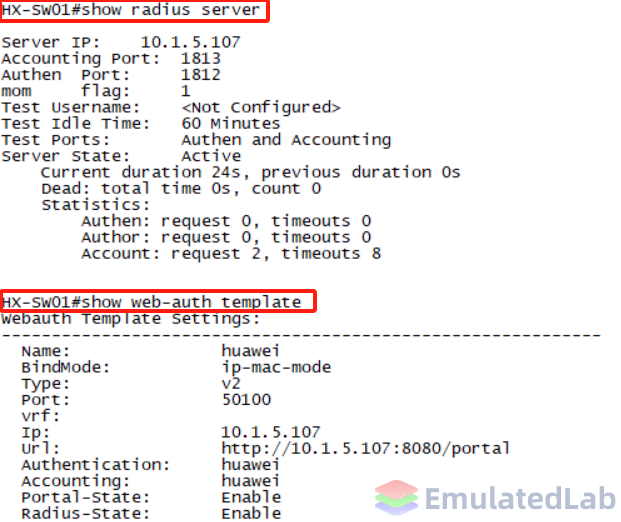

（1）ping DNS不通，这里设置为内网dns=10.168.1.254，在锐捷路由器上可以看到nat表项，输入1.1.1.1无法正常跳转

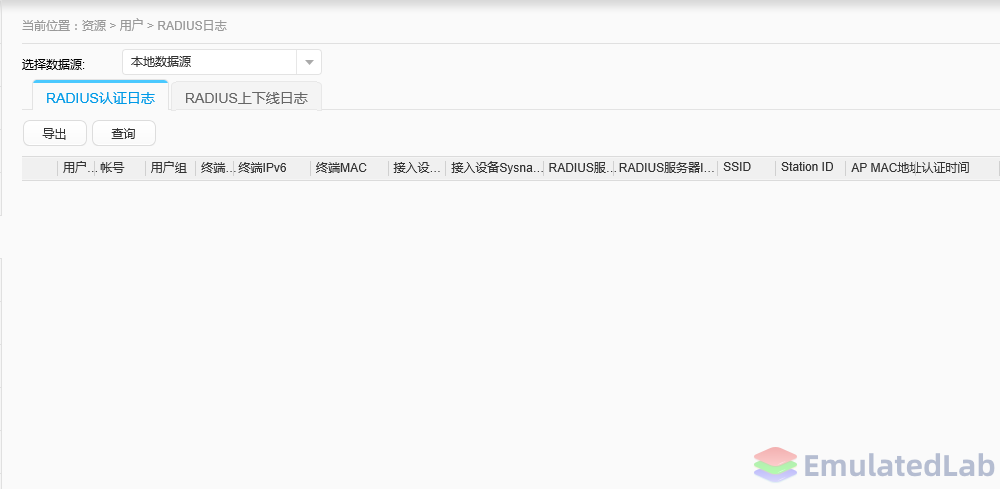

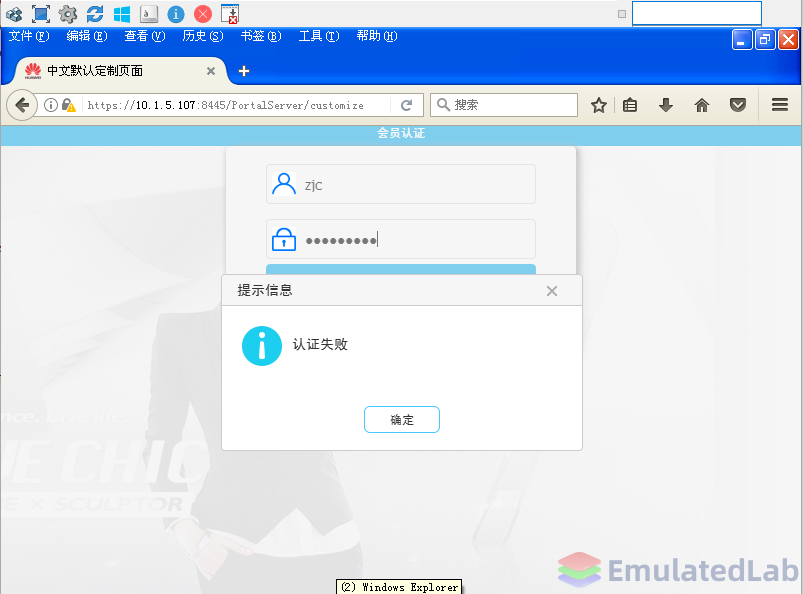

（2）直接输入portal认证地址，也认证不成功，radius无认证记录
