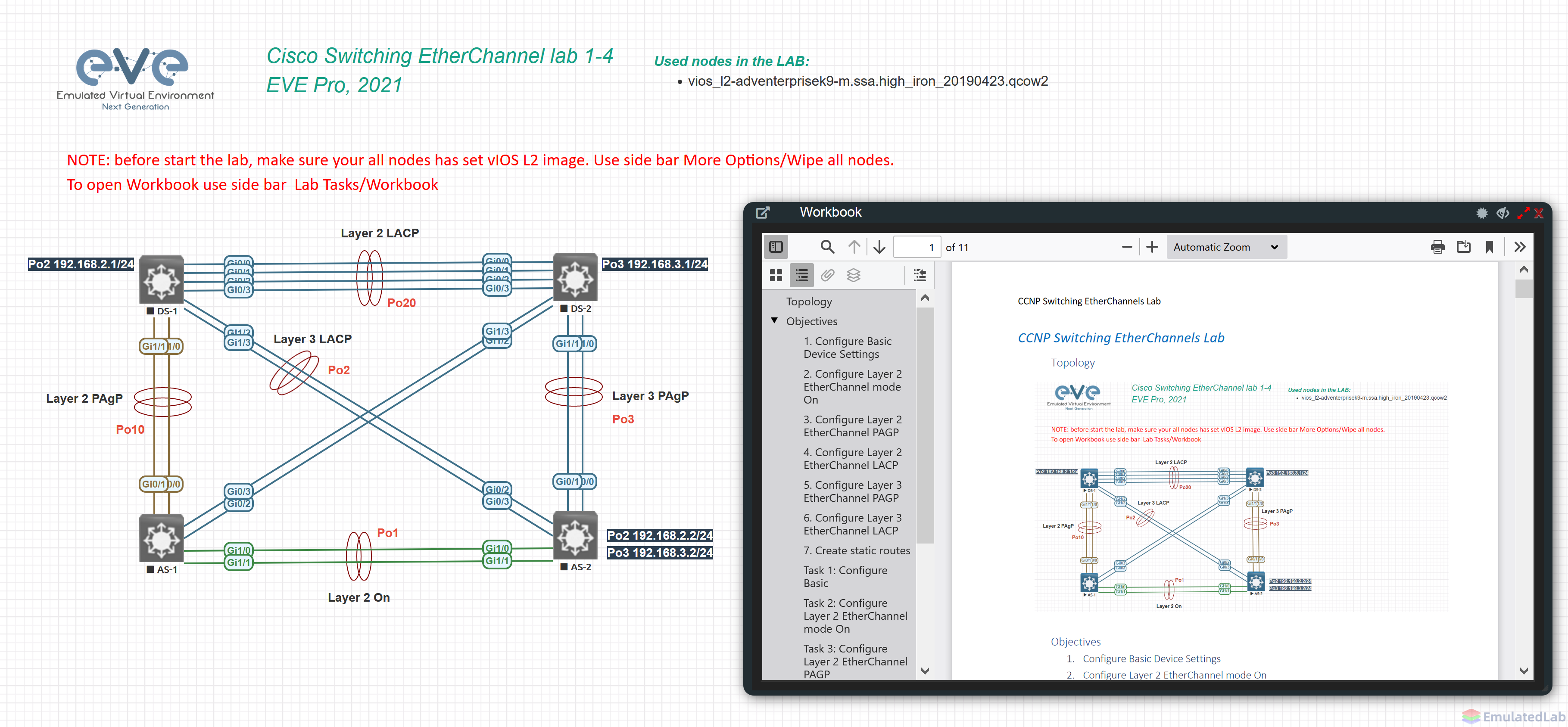

Covered technologies, STP, RSTP, MSTP, VTP, Etherchannels (L2/L3), SPAN/RSPAN and Private VLANs
Lab requirements: x4 vCPU, 8GB RAM Images used in labs: - vIOS L2 viosl2-adventerprisek9-m.cml.SSA.high_iron_20190423
- EVE-NG Docker: eve-gui-server
- EVE-NG Docker: wireshark
- VPCS host device
Note: After lab set is imported, please make sure you have set for lab with proper vIOS image. The image version used in lab, is shown on the Topology. Lab contains 2 configuration sets Default and Solved. Default configuration set has no configuration.
Steps to start a lab: - Make sure your lab has set proper vIOS images version for all nodes
- Use Side bar/More Actions/Wipe All (clean previous saved NVRAM)
- Side bar/More Actions/Start All
- Side Bar/Lab Tasks/Workbook
Enjoy
